AVERY BOPP

Single-Coated Film

Avery BOPP is a single-coated, transparent, biaxially oriented polypropylene film. Designed for diagnostic lidding applications where transparency, barrier and breathablity properties are necessary to assist in the growth and identification of infectious agents for the purpose of identifying potential medical treatments.


Typical Application

Designed for microplate applications.


Features and Benefits
  • Optically clear
  • Oxygen permeable
  • High adhesion to Polystyrene and Polypropylene
  • Inert adhesive

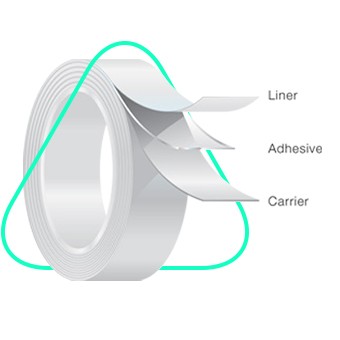

  Product Construction Typical Values*    Description
  Liner Thickness
2.0 mils 50 µm
  Polyester film
  Adhesive Thickness
1.5 mils 40 μm
  Silicone adhesive designed for medical applications
  Carrier Thickness
1.0 mils
25 µm
  BOPP film



  Physical Properties (Not intended as a specification.) Typical Values*
  Adhesive Coat Weight
41.9
  180 Degree Peel
3 lbs/in
  90 Degree TLMI Release
10 GF/2 in
  Solvent Retention
<.5%


*Refer to product specifications for material acceptance limits. **Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
