AVERY PET

Single-Coated Film

Avery PET is a single-coated, transparent, polyester film. Designed for diagnostic lidding applications where transparency, barrier and breathablity properties are necessary to assist in the growth and identification of infectious agents for the purpose of identifying potential medical treatments.

Typical Application

Designed for microplate applications.

Features and Benefits
  • Optically clear
  • Barrier layer
  • Inert adhesive
  • High adhesion to Polystyrene and Polypropylene

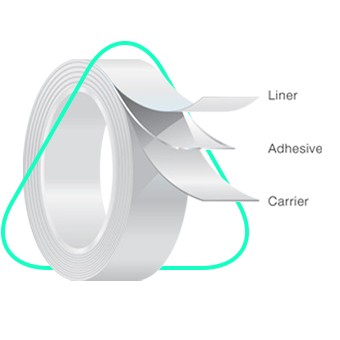

  Product Construction Typical Values*    Description
  Carrier Thickness
 1.0 mils
   Clear polyester film
  Adhesive Thickness
 1.5 mils
   Silicone adhesive designed for medical applications
  Liner Thickness
 2.0 mils
   Clear polyester film



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  180 Degree Peel Adhesion
 MTR-PRO-000082
 3.0 lbf/in
  TLMI Release
 MTR-PRO-000081
 10 Gf/2 in w
  Solvent Retention
 MTR-PRO-000086
 0.5%
  Adhesive Coat Weight
 MTR-PRO-000085
 41.9 g/Sqm


*Refer to product specifications for material acceptance limits. **Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
