MED 0359

Single-Coated Film

MED 0359 is an adhesive-coated polyester film designed for sealing of microplates used in clinical diagnostic testing.

Typical Application

Designed for microplate applications for analytical research and clinical diagnostic laboratory testing.

Features and Benefits
  • Good adhesion
  • Printable
  • Moisture resistant
  • Smooth adhesive coat

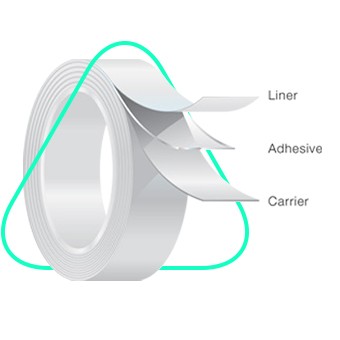

  Product Construction
 Typical Values*   Description
  Carrier Thickness2.0 mils51 μm
   Polyester Film
  Adhesive Thickness1.5 mils38 μm
   Acrylic adhesive designed for medical applications
  Liner Thickness7.1 mils180 μm
   Single-coated Staflat release liner



  Physical Properties (Not intended as a specification.)
 Test MethodTypical Values*
  180 Degree Peel Adhesion on Stainless Steel (SS)
STD-103.8 lbf/in
  Liner ReleaseSTD-845 GF/2 in


*Refer to product specifications for material acceptance limits. **Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
