MED 2171H

Transfer Tape

MED 2171H is a transfer tape containing an advanced and highly integrated hydrocolloid formulation. This product's absorbent adhesive is designed to not break down upon saturation, provides for a low profile, assists in creating optimal skin and wound healing conditions and has high fluid handling capacity.

Typical Application

Designed for wound care and fixation of medical devices.

Features and Benefits
  • Conformable
  • Highly integrated hydrocolloid
  • Transparent
  • High absorption rate
  • Moisture resistant
  • Die-cuttable
  • Gamma sterilizable

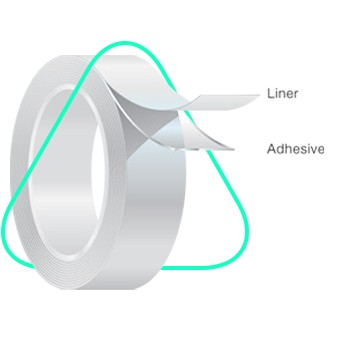

  Product Construction Typical Values*   Description
  Adhesive Thickness 11.8 mils 300 μm
   Hydrocolloid designed for medical applications
  Liner Thickness 3.3 mils 85 μm
   White super-calendered glassine



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE)
 TDS-02 0.5 lbf/in
 2.0 N/25 mm
  Peel Adhesion on Stainless Steel (SS)
 TDS-04 0.9 lbf/in
 4.0 N/25 mm
  Liner Release TDS-06 1.3 oz/in
 35 g/25 mm
  Reverse Tack TDS-09
 2.8 lbf/in
 12 N/25 mm
  Static Shear  TDS-14
 270 minutes
  MVTR TDS-17
 40 g/100 in2 per 24 hr
 600 g/m2 per 24 hr
  Static Absorption TDS-17
 200 g/100 in2 per 24 hr
 3000 g/m2 per 24 hr

MVTR, moisture vapor transmission rate.
*Test method information available upon request.
**Refer to product specifications for material acceptance limits.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
