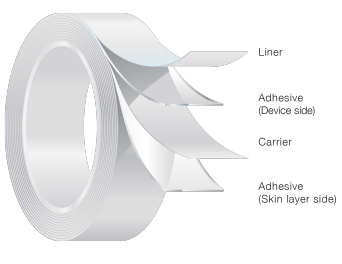

| Product Construction |
Typical Values |
Description |
| Unwind Adhesive Thickness |
2.0 mils |
50 μm |
Acrylic-based adhesive designed for medical applications |
| Carrier Thickness |
1.0 mils |
25 μm |
Transparent polyurethane (PU) film |
| Liner Adhesive Thickness |
1.7 mils |
43 μm |
Acrylic-based adhesive designed for medical applications |
| Liner Thickness |
3.0 mils |
76 μm |
White super-calendered kraft |
| Physical Properties (Not intended as a specification.) |
Test Method* |
Typical Values✝ |
| 90-Degree Peel Adhesion on Stainless Steel (SS) - Liner |
TDS-04 |
> 8.0 lbf/in** |
> 35.6 N/25mm** |
| 90-Degree Peel Adhesion on Stainless Steel (SS) - Unwind |
TDS-04 |
> 8.0 lbf/in** |
> 35.6 N/25mm** |
| 90 Degree Release - Liner |
TDS-06 |
1.0 oz/in |
28.5 g/25 mm |
| 90 Degree Release - Unwind |
TDS-06 |
1.0 oz/in |
29.5 g/25 mm |
| Elongation - Machine Direction |
TDS-15 |
460% |
| Elongation - Cross Direction |
TDS-15 |
429% |
| Load at Break - Machine Direction |
TDS-15 |
10.6 lbf/in |
47.0 N/25 mm |
| Load at Break - Cross Direction |
TDS-15 |
10.4 lbf/in |
46.4 N/25 mm |
*Test method information available upon request.
**Adhesion to stainless steel is higher than the internal strength of the carrier.
✝Refer to product specifications for material acceptance limits.
STORAGE AND SHELF LIFE
Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
