MED 4491

Single-Coated Film

MED 4491 is a single-coated, selfwound blue polypropylene film with a hotmelt rubber-based adhesive.

Typical Application

Designed to create fingerlifts and handling tabs in various medical applications.

Features and Benefits
  • Thin and conformable
  • Moisture resistant
  • Die-cuttable
  • Gamma and EtO sterilizable

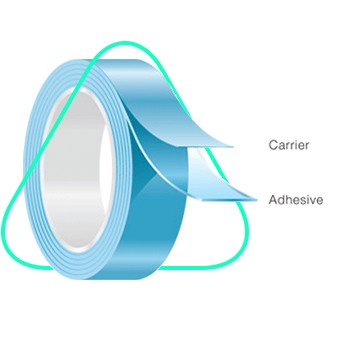

  Product Construction
Typical Values*  Description
  Adhesive Thickness1.2 mils30 μm
  Synthetic rubber-based adhesive designed for medical applications
  Carrier Thickness2.6 mils65 μm
  Blue polypropylene film



  Physical Properties (Not intended as a specification.)Test Method**Typical Values*
  Peel Adhesion on Polyethylene (PE)
TDS-021.0 lbf/in
4.5 N/25 mm
  Peel Adhesion on Stainless Steel (SS)
TDS-035.0 lbf/in
22.0 N/25 mm
  Dynamic ShearTDS-1182 lbf/in
360 N/25 mm
  Finat TackTDS-081.1 lbf/in
5 N/25 mm
  Elongation Machine BreakTDS-15600%
  Load at Break Machine DirectionTDS-158.6 lbf/in
38 N/25mm


*Refer to product specifications for material acceptance limits. **Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
