MED 5043

Single-Coated Film

MED 5043 is a single-coated, soft, pliable, transparent polyurethane film with an acrylic adhesive. This product's conformable film offers user comfort, while its transparency allows for wound or site visibility.


Typical Application

Designed for incise applications, wound care, advanced and consumer bandage applications.


Features and Benefits
  • Transparent and Breathable
  • Conformable
  • Moisture resistant
  • Die-cuttable and easy to handle
  • Sterilization compatibility with Ethylene Oxide (EO) and Gamma Irradiation

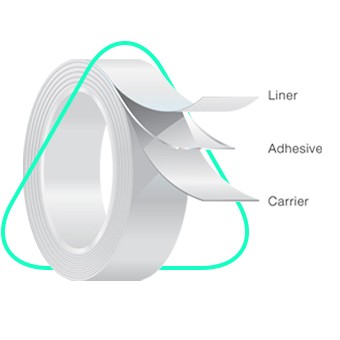

  Product   Construction     Typical   Values*            Description
  Carrier Thickness
4.0 mils
102 µm
  Transparent polyurethane film
  Adhesive Thickness
0.9 mils
24 µm
  Acrylic-based adhesive designed for medical applications
  Liner Thickness
3.1 mils
79 µm
  White single-coated kraft



 Physical Properties (Not intended as a     specification.) Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE)
TDS-01 0.5 lb/in
2.0 N/25 mm
  Peel Adhesion on Stainless Steel (SS)
TDS-03
 2.1 lb/in
9.2 N/25 mm
  Finat Tack
TDS-07
 3.1 lb/in
13.6 N/25 mm
  Liner Release TDS-06   0.5 oz/in
14 g/25 mm
  Static Shear                                                                                 TDS-12 140 minutes
  MVTR
TDS-16
13.3 [g/100in2/24 hours]
200 [g/m2/24 hours]

MVTR, moisture vapor transmission rate.
*Refer to product specifications for material acceptance limits. **Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
