MED 5075A

Single-Coated 50µm Transparent EMA Film

MED 5075A is a single coated soft, pliable, transparent EMA film with an acrylic adhesive. This product's conformable film offers a high degree of user comfort, while its transparency allows for wound or site visibility; its matte finish helps to reduce the reflection of light which is particularly valuable in surgical applications.

Typical Application

Designed for incise applications during short-term surgeries, wound dressings and ostomy flanges.

Features and Benefits
  • Conformable
  • Transparent
  • Moisture Resistant
  • Heat sealable
  • Die-cuttable
  • Gamma and EtO sterilizable

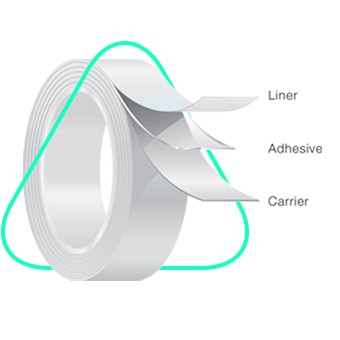

  Product Construction Typical Values*    Description
  Carrier Thickness 2.0 mils 50 μm
   Transparent matte-finished EMA film
  Adhesive Thickness 2.0 mils 50 μm
   Acrylic adhesive designed for medical applications
  Release Liner Thickness
 2.6 mils 65 µm
   White super-calendered glassine



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE)
 TDS-01 0.9 lbf/in
 4.0 N/25 mm
  Peel Adhesion on Stainless Steel (SS)
 TDS-03 2.7 lbf/in
 12.5 N/25 mm
  Liner Release TDS-06
 2.1 oz/in
 52 g/25 mm
  Dynamic Shear TDS-10 30 lbf/in
 130 N/25 mm
  Finat Tack TDS-07 7.3 lbf/in
 32 N/25 mm
  Elongation Machine Direction TDS-15 650%
  Elongation Cross Direction TDS-15 700%
  Load at Break Machine Direction TDS-15 5.5 lbf/in
 25 N/ 25mm
  Load at Break Cross Direction TDS-15 5.0 lbf/in
 22 N/ 25mm


*Refer to product specifications for material acceptance limits. **Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
