MED 5085A

Single-Coated Film

MED 5085A is a single-coated, 3-layered EVA-PVDC-EVA co-extruded gas barrier film, which is easily sealable. This product's soft, pliable, transparent, conformable film to most body contours offers a high degree of user comfort.

Typical Application

Designed for Ostomy flanges and securement.

Features and Benefits
  • Conformable
  • Transparent
  • Die-cuttable
  • Heat Sealable
  • Moisture resistant
  • Gamma and EtO sterilizable

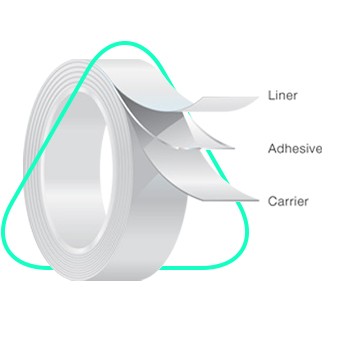

  Product Construction Typical Values*    Description
  Carrier Thickness 2.6 mils 65 μm
   Transparent coextruded EVA - PVDC - EVA film
  Adhesive Thickness 1.2 mils 30 μm
   Acrylic adhesive designed for medical applications
  Release Liner Thickness
 2.6 mils 65 µm
   White super calendered glassine



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE)
 TDS-01 0.5 lbf/in
 2.0 N/25 mm
  Peel Adhesion on Stainless Steel (SS) TDS-03 1.4 lbf/in
 6.5 N/25 mm
  Liner Release
 TDS-06 0.7 oz/in
 32 g/25 mm
  Dynamic Shear TDS-10 59 lbf/in
 260 N/25 mm
  Finat Tack TDS-07
 3.5 lbf/in
 15 N/25 mm
  Elongation Machine Direction TDS-15 425%
  Elongation Cross Direction TDS-15 625%
  Load at Break Machine Direction TDS-15 11 lbf/in
 50 N/25mm
  Load at Break Cross Direction TDS-15 11 lbf/in
 50 N/25mm


*Refer to product specifications for material acceptance limits. **Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
