MED 5094H

Single-Coated Film Hydrocolloid

MED 5094H is a transparent, coextruded EVA-PVDC-EVA film containing an advanced and integrated hydrocolloid formulation. This product's absorbent adhesive is designed to not break down upon saturation, provides a low profile, assists in creating optimal skin and wound healing conditions and has a high fluid handling capacity.

Typical Application

Designed for wound care and fixation of medical devices.

Features and Benefits
  • Conformable
  • Integrated hydrocolloid
  • High absorption rate
  • Moisture resistant
  • Die-cuttable
  • Gamma sterilizable

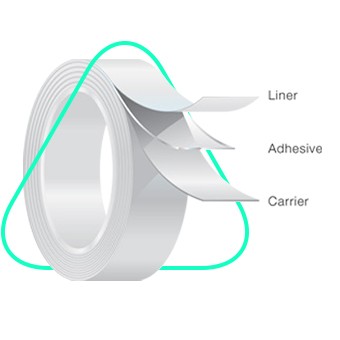

  Product Construction Typical Values*    Description
  Carrier Thickness 3.7 mils 95 μm
   Transparent co-extruded EVA-PVDC-EVA film
  Adhesive Thickness 12 mils 300 μm
   Hydrocolloid designed for medical applications
  Release Liner Thickness
 3.4 mils 85 µm
   White super-calendered glassine



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE)
 TDS-02 0.5 lbf/in
 2.2 N/25 mm
  Peel Adhesion on Stainless Steel (SS) TDS-04 1.1 lbf/in 4.7 N/25 mm
  Liner Release
 TDS-06 2.5 oz/in 42 g/25 mm
  Static Shear TDS-14 1560 min
  Reverse Tack TDS-09
 3.5 lbf/in
 15 N/25 mm
  MVTR TDS-17 3 [g/100in2 -24 hours]
 50 [g/m2 -24 hours]
  Static Absorption TDS-17 221 [g/100in2 -24 hours]
 3430 [g/m2 -24 hours]


*Refer to product specifications for material acceptance limits. **Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
