MED 5322P

Single-Coated Nonwoven

MED 5322P is a single-coated, tan spunlaced nonwoven with a porous acrylic adhesive. This product's unique construction results in a high MVTR, allowing air and moisture to pass freely through the breathable adhesive and nonwoven carrier, which can support extended wear and reduce the likelihood of skin maceration in some applications.


Typical Application

Designed for TENS electrodes and other devices where good skin adhesion, comfort and breathability are desired.


Features and Benefits
  • Highly breathable
  • Heat sealable
  • Extended wear time
  • Die-cuttable
  • Gamma and EtO sterilizable

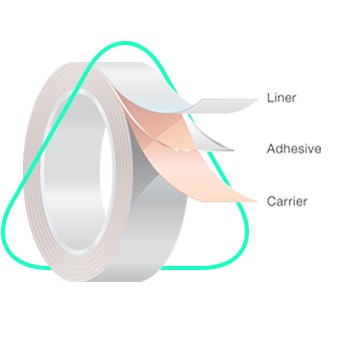

  Product Construction Typical Values*   Description
  Carrier Thickness 22.6 mils 575 μm
  Tan spunlaced nonwoven
  Adhesive Thickness 2.0 mils 50 μm
  Porous acrylic adhesive designed for medical applications
  Liner Thickness
3.1 mils 80 µm
  White single-coated kraft



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE)
TDS-01 0.7 lbf/in
3.0 N/25 mm
  Peel Adhesion on Stainless Steel (SS)
TDS-05
0.8 lbf/in
3.5 N/25 mm
  Liner Release  TDS-06 1.5 oz/in
55 g/25 mm
  Finat Tack TDS-07 1.8 lbf/in
8 N/25 mm
  Static Shear TDS-12 830 minutes
  MVTR TDS-16 150 g/100 in2 per 24 hr
2300 g/m2 per 24 hr

MVTR, moisture vapor transmission rate.
*Refer to product specifications for material acceptance limits.
**Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
