MED 5504/60 HCW

Single-Coated Film

MED 5504/60 HCW is a single coated pliable, transparent and conformable vinyl film with an acrylic adhesive. This product's conformability offers a high degree of user comfort, while its transparency allows for site visibility; in some applications, it can act as a barrier to assist in decreasing the risk of bacterial infections.


Typical Application

Designed for electrode applications.


Features and Benefits
  • Transparent
  • Breathable
  • High adhesion

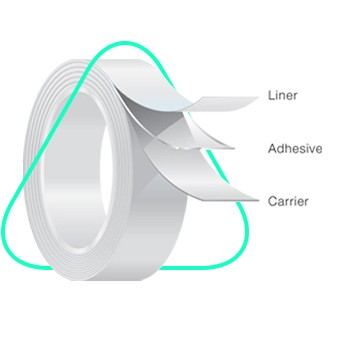

  Product Construction Typical Values*   Description
  Carrier Thickness 5.0 mils 125 μm
  Transparent vinyl film
  Adhesive Thickness 3.0 mils 75 μm
  Acrylic adhesive designed for medical applications
  Release Liner Thickness
3.2 mils 80 µm
  Single-coated kraft



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE)
TDS-01 0.9 lbf/in
4.0 N/25 mm
  Peel Adhesion on Stainless Steel (SS)
TDS-03
4.1 lbf/in
18.0 N/25 mm
  Liner Release  TDS-06 1.0 oz/in
36 g/25 mm
  Dynamic Shear TDS-10 11 lbf/in
50 N/25 mm
  Finat Tack TDS-07 4.0 lbf/in
18 N/25 mm
  Elongation Machine Direction TDS-15 200%
  Elongation Cross Direction TDS-15 375%
  Load at Break Machine Direction TDS-15 16.5 lbf/in
74 N/25mm
  Load at Break Cross Direction TDS-15 16.5 lbf/in
74 N/25mm


*Refer to product specifications for material acceptance limits. **Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
