MED 5506

Single-Coated Film

MED 5506 is a single-coated, white, pliable and conformable vinyl film with an acrylic adhesive. This product's conformable film offers a high degree of user comfort, while in some cases, it acts as a barrier to assist in decreasing the risk of bacterial infections.


Typical Application

Designed for mounting electromedical, ostomy and other devices to the skin for sustained periods.


Features and Benefits
  • Conformable
  • Moisture resistant
  • Bacterial barrier
  • High adhesion to skin
  • Die-cuttable
  • Gamma and EtO sterilizable

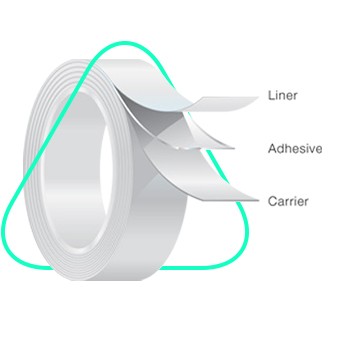

  Product Construction Typical Values*   Description
  Carrier Thickness 3.4 mils 85 μm
  White vinyl film
  Adhesive Thickness 2.0 mils 50 μm
  Acrylic adhesive designed for medical applications
  Release Liner Thickness
3.2 mils 80 µm
  Single-coated kraft



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE)
TDS-01 0.9 lbf/in
4.0 N/25 mm
  Peel Adhesion on Stainless Steel (SS)
TDS-03
4.5 lbf/in
20.5 N/25 mm
  Liner Release  TDS-06 1.0 oz/in
26 g/25 mm
  Dynamic Shear TDS-10 34 lbf/in
150 N/25 mm
  Finat Tack TDS-07 6.5 lbf/in
29 N/25 mm
  Elongation Machine Direction TDS-15 75%
  Elongation Cross Direction TDS-15 75%
  Load at Break Machine Direction TDS-15 13.5 lbf/in
61 N/25mm
  Load at Break Cross Direction TDS-15 13.5 lbf/in
61 N/25mm


*Refer to product specifications for material acceptance limits. **Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
