MED 5507

Single-Coated Film

MED 5507 is a single-coated, white, pliable vinyl film with an acrylic adhesive. This product offers a high degree of user comfort, while in some cases, it can act as a bacterial barrier to assist in decreasing the risk of bacterial infections.

Typical Application

Designed for mounting electromedical, ostomy and other devices to the skin for sustained periods.

Features and Benefits
  • Conformable
  • Bacterial barrier
  • Die-cuttable
  • High adhesion to skin
  • Moisture resistant
  • Gamma and EtO sterilizable

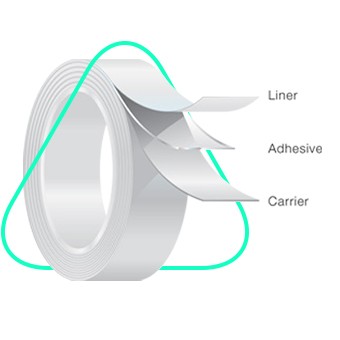

  Product Construction Typical Values*   Description
  Carrier Thickness 7.5 mils 190 μm
   White vinyl film
  Adhesive Thickness 2.0 mils 50 μm
   Acrylic adhesive designed for medical applications
  Release Liner Thickness
 3.2 mils 80 µm
   Single-coated kraft



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE)
 TDS-01 0.9 lbf/in
 4.0 N/25 mm
  Peel Adhesion on Stainless Steel (SS)
 TDS-03
 8.0 lbf/in
 36.0 N/25 mm
  Liner Release  TDS-06 0.7 oz/in
 24 g/25 mm
  Dynamic Shear TDS-10 25 lbf/in
 110 N/25 mm
  Finat Tack TDS-07 8.0 lbf/in
 35 N/25 mm
  MVTR TDS-16 32 [g/100in2 -24 hours]
 500 [g/m2 -24 hours]
  Elongation Machine Direction TDS-15 200%
  Elongation Cross Direction TDS-15 175%
  Load at Break Machine Direction TDS-15 54.0 lbf/in
 243 N/25mm
  Load at Break Cross Direction TDS-15 44.0 lbf/in
 197 N/25mm


*Refer to product specifications for material acceptance limits. **Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
