MED 5509

Single-Coated Film

MED 5509 is a single-coated, pliable, transparent and conformable vinyl film with an acrylic adhesive. This product's conformability offers a high degree of user comfort, while its transparency allows for site visibility; in some applications, it can act as a barrier to assist in decreasing the risk of bacterial infections.

Typical Application

Designed for mounting electromedical, ostomy and other devices to the skin for sustained periods.

Features and Benefits
  • Transparent and conformable
  • Bacterial barrier
  • Die-cuttable
  • Moisture resistant
  • High adhesion to skin
  • Gamma and EtO sterilizable

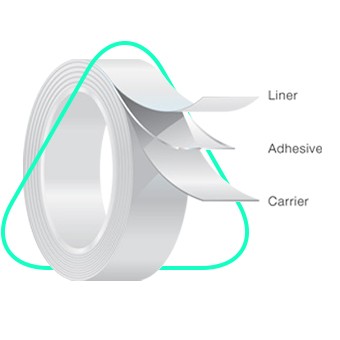

  Product Construction Typical Values*    Description
  Carrier Thickness 5.0 mils
 125 µm
   Transparent vinyl film
  Adhesive Thickness 1.4 mils
 35 µm
   Acrylic adhesive designed for medical applications
  Liner Thickness
 3.2 mils
 80 µm
   Single-coated kraft



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE)
 TDS-01 0.6 lbf/in
 2.6 N/25 mm
  Peel Adhesion on Stainless Steel (SS) TDS-03 3.3 lbf/in
 15.0 N/25 mm
  Dynamic Shear TDS-10 11 lbf/in
 50 N/25 mm
  Finat Tack TDS-07 3.0 lbf/in
 13 N/25 mm
  Liner Release TDS-06
 0.6 oz/in
 28 g/25 mm
  Elongation Machine Direction TDS-15 225%
  Elongation Cross Direction TDS-15 375%
  Load at Break Machine Direction TDS-15 16.0 lbf/in
 71 N/25mm
  Load at Break Cross Direction TDS-15 17.0 lbf/in
 76 N/25mm


*Refer to product specifications for material acceptance limits. **Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
