MED 5511

Single-Coated Film

MED 5511 is a clear vinyl tape coated on one side with an acrylic pressure sensitive adhesive, protected by a kraft release liner coated on one side with a silicone release coating.

Typical Application

Designed for finger bandage and wound care applications.

Features and Benefits
  • Thin and conformable
  • Printable
  • Breathable
  • Moisture resistant
  • Die-cuttable
  • Gamma and EtO sterilizable
  • Transparent

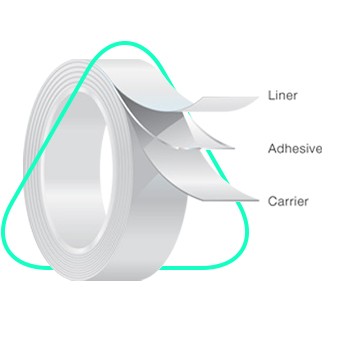

  Product Construction
  Typical Values*    Description
  Carrier Thickness 3.0 mils
 76 µm
   Clear vinyl film
  Adhesive Thickness 1.2 mils 30 μm
    Acrylic adhesive designed for medical applications
  Liner Thickness 3.2 mils
 80 µm
   White single-coated kraft



  Physical Properties (Not intended as a specification.)
  Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE)
 STD-10
 1.5 lbf/in
 263 N/Meter
  TLMI Release
 STD-8
 50 Gf/2 in
 984 G/Meter
  Finat Tack
 TDS-08
 2.95 lbf/in
 13.2 N/25 mm
  Elongation Machine Direction STD-3A
 175%
  Elongation Cross Direction STD-3A
 300%
  Tensile Machine Direction STD-3A
 2700 PSI
  Tensile Cross Direction STD-3A
 2500 PSI


*Refer to product specifications for material acceptance limits. **Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
