MED 5541H

Hydrocolloid

MED 5541H is a single-coated, transparent polyurethane film with an advanced and highly integrated hydrocolloid formulation. This product's absorbent adhesive is designed to not break down upon saturation, to provide for a low profile, to assist in creating optimal skin and wound healing conditions, and has a high fluid handling capacity. Its high tack property offers a high degree of securement.

Typical Application

Designed for wound care, ostomy and fixation of medical devices.

Features and Benefits
  • High tack
  • Conformable
  • Highly integrated
  • Transparent
  • High absorption rate
  • Moisture resistant
  • Die-cuttable
  • Gamma sterilizable

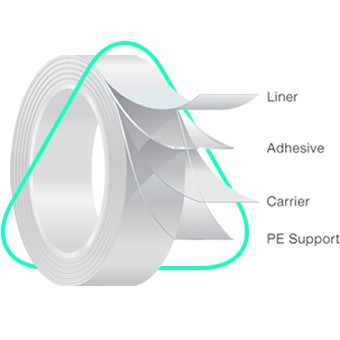

  Product          Construction  Typical     Values*      Description
  Carrier Thickness
 1 mils
 25 µm
  Transparent polyurethane film
  Adhesive Thickness
 12 mils
 300 µm
  Hydrocolloid designed for medical     applications
  Liner Thickness
 3.3 mils
 85 µm
  White super-calendered glassine



 Physical Properties (Not intended as a  specification.) Test    Method** Typical Values*
 Peel Adhesion on Polyethylene   (PE)
 TDS-02 0.5 lbf/in
 2 N/25 mm
 Peel Adhesion on Stainless Steel   (SS)
 TDS-04
 3.7 lbf/in
 38 N/25 mm
 Liner Release
 TDS-06
 2.3 oz/in
 65 g/25 mm
 Reverse Tack TDS-9 9.6 lbf/in
 42 N/25 mm
 Static Shear TDS-14 9700 minutes
 MVTR TDS-17                41                    g/100 in2/24 h          650          g/m2/24hr
 Static Absorption TDS-17                 190                    g/100in2/24hr
      3000        g/m2/24 hr

MVTR, moisture vapor transmission rate.
*Refer to product specifications for material acceptance limits. **Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
