MED 5584H

Hydrocolloid

MED 5584H is a single-coated, transparent polyurethane film containing a gentle and highly absorbent, traditional hydrocolloid adhesive.


Typical Application

Designed for ostomy flange applications.


Features and Benefits
  • Conformable
  • Traditional hydrocolloid
  • High absorption rate
  • Moisture resistant
  • Die-cuttable
  • Gamma sterilizable

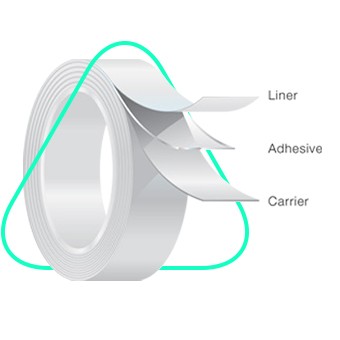

  Product Construction Typical Values*   Description
  Carrier Thickness 2.8 mils 70 μm
  Transparent polyurethane film
  Adhesive Thickness 26 mils
650 µm
  Hydrocolloid designed for medical applications
  Release Liner Thickness 5.1 mils
130 µm
  White polyethylene-protected paper



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE)
TDS-02 0.2 lbf/in
1.0 N/25 mm
  Peel Adhesion on Stainless Steel (SS)
TDS-04
1.4 lbf/in
6.0 N/25 mm
  Liner Release TDS-06 2.7 oz/in
93 g/25 mm
  Static Shear TDS-14 230 min
  Reverse Tack TDS-09
3.7 lbf/in
16 N/25 mm
  MVTR TDS-17 48 [g/100in2 -24 hours]
750 [g/m2 -24 hours]
  Static Absorption TDS-17 400 [g/100in2 -24 hours]
6250 [g/m2 -24 hours]


*Refer to product specifications for material acceptance limits. **Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
