MED 5597H

Single-Coated Film Hydrocolloid

MED 5597H is a single-coated, transparent polyurethane film with an advanced and highly integrated hydrocolloid formulation. This product's absorbent adhesive is designed to not break down upon saturation, to provide for a low profile, to assist in creating optimal skin and wound healing conditions, and has a high fluid handling capacity.


Typical Application

Designed for wound care and fixation of medical devices.


Features and Benefits
  • Conformable
  • Integrated
  • High absorption rate
  • Moisture resistant
  • Die-cuttable
  • Gamma sterilizable

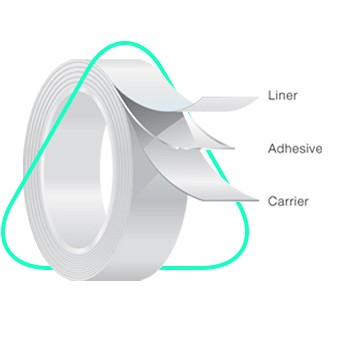

  Product Construction Typical Values*   Description
  Carrier Thickness 2.8 mils 70 μm
  Transparent polyurethane film
  Adhesive Thickness 16 mils
400 µm
  Hydrocolloid designed for medical applications
  Release Liner Thickness 3.3 mils
85 µm
  White super-calendered glassine



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Stainless Steel (SS)
TDS-04
1.1 lbf/in
5.0 N/25 mm
  Liner Release TDS-06 1.5 oz/in
43 g/25 mm
  Static Shear TDS-14 700 min
  Reverse Tack TDS-09
3.6 lbf/in
18 N/25 mm
  Static Absorption TDS-17 240 [g/100in2 -24 hours]
3700 [g/m2 -24 hours]


*Refer to product specifications for material acceptance limits. **Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
