MED 5635

Single-Coated Foam

MED 5635 is a single-coated, white, soft, conformable, thick EVA foam with an acrylic adhesive. This product's high tack and high level of adhesion provides for a strong bond to the skin under stress conditions. It contains a heavy duty liner with an easy release, ideal for converting.

Typical Application

Designed for mounting electrodes, grounding pads and other devices for sustained periods.

Features and Benefits
  • Conformable
  • Moisture resistant
  • High adhesion to skin
  • Die-cuttable
  • Gamma and EtO sterilizable

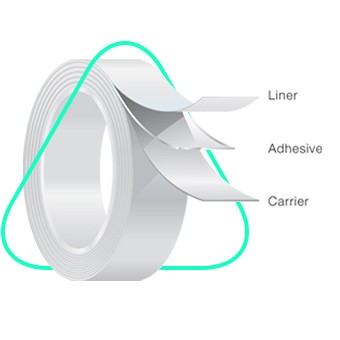

  Product Construction Typical Values*   Description
  Carrier Thickness 62.5 mils 1590 µm
   White, closed-cell EVA foam
  Adhesive Thickness 2.3 mils
 60 µm
   Acrylic adhesive designed for medical applications
  Liner Thickness
 6.5 mils
 165 µm
   White single-coated kraft



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE)
 TDS-01 1.2 lbf/in
 5.5 N/25 mm
  Peel Adhesion on Stainless Steel (SS)
 TDS-04
 4.8 lbf/in
 21.0 N/25 mm
  Liner Release
 TDS-06
 2.1 oz/in
 60 g/25 mm
  Finat Tack
 TDS-07
 13.5 lbf/in
 59 N/25 mm
  Static Shear
 TDS-12
 1200 minutes
  Elongation Machine Direction TDS-15 400%
  Elongation Cross Direction TDS-15 375%
  Load at Break Machine Direction TDS-15 9 lbf/in
 40 N/ 25mm
  Load at Break Cross Direction TDS-15 5 lbf/in
 25 N/ 25mm


*Refer to product specifications for material acceptance limits.
**Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
