MED 5661A

Single-Coated Foam

MED 5661A is a single-coated, white, soft, conformable, thin polyethylene foam with an acrylic adhesive. This product's high tack and level of adhesion provide for an strong  bond to the skin, even under stress conditions. It contains a heavy-duty liner with an easy release, ideal for converting.

Typical Application

Designed for mounting electrodes, grounding pads and other devices for sustained periods.

Features and Benefits
  • Conformable
  • Moisture resistant
  • Die-cuttable
  • Gamma and EtO sterilizable

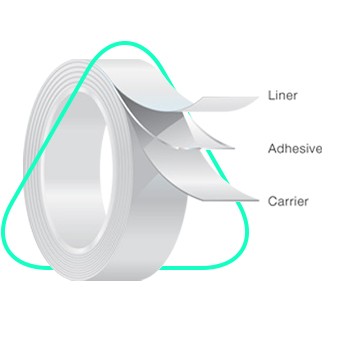

  Product Construction Typical Values*   Description
  Carrier Thickness 39.4 mils 1000 µm
   White polyethylene foam
  Adhesive Thickness 2.0 mils
 50 µm
   Acrylic adhesive designed for medical applications
  Liner Thickness
 2.6 mils
 65 µm
   White super-calendered glassine



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE)
 TDS-01 0.8 lbf/in
 3.5 N/25 mm
  Peel Adhesion on Stainless Steel (SS)
 TDS-04
 3.1 lbf/in
 13.5 N/25 mm
  Liner Release
 TDS-06
 1.0 oz/in
 35 g/25 mm
  Finat Tack
 TDS-07
 8.0 lbf/in
 35 N/25 mm
  Static Shear
 TDS-12
 310 minutes
  Elongation Machine Direction TDS-15 400%
  Elongation Cross Direction TDS-15 375%
  Load at Break Machine Direction TDS-15 7 lbf/in
 30 N/ 25mm
  Load at Break Cross Direction TDS-15 4 lbf/in
 20 N/ 25mm

*Refer to product specifications for material acceptance limits.
**Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
