MED 5674U

Single-Coated Foam

MED 5674U is a single-coated, white, soft, conformable polyethylene foam with a solventless acrylic adhesive. This product's high tack and level of adhesion provide for a strong bond to the skin, even under stress conditions. It contains a heavy duty liner with an easy release, ideal for converting.

Typical Application

Designed for mounting electrodes, grounding pads and other devices for sustained periods.

Features and Benefits
  • Conformable
  • Moisture resistant
  • Die-cuttable
  • Gamma and EtO sterilizable

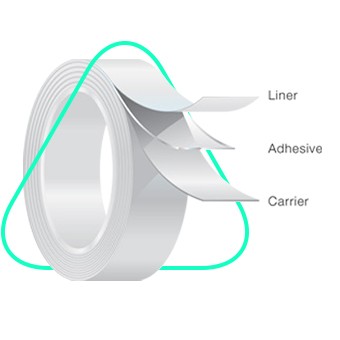

  Product Construction Typical Values*   Description
  Carrier Thickness 39.4 mils
 1000 µm
   White polyethylene foam
  Adhesive Thickness 2.8 mils
 70 µm
   Solventless acrylic adhesive designed for medical applications
  Liner Thickness
 2.6 mils
 65 µm
   White super-calendered glassine



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE)
 TDS-01 1.2lbf/in
 5.5 N/25 mm
  Peel Adhesion on Stainless Steel (SS)
 TDS-04
 3.3 lbf/in
 14.5 N/25 mm
  Liner Release
 TDS-06
 1.4 oz/in
 40 g/25 mm
  Finat Tack
 TDS-07
 10.5 lbf/in
 48 N/25 mm
  Static Shear
 TDS-12
 380 minutes
  Elongation Machine Direction TDS-15 450%
  Elongation Cross Direction TDS-15 375%
  Load at Break Machine Direction TDS-15 7 lbf/in
 30 N/25mm
  Load at Break Cross Direction TDS-15 3 lbf/in
 15 N/25mm

*Refer to product specifications for material acceptance limits.
**Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
