MED 5698R

Single-Coated Foam

MED 5698R is a single-coated, white, soft, conformable polyethylene foam with a synthetic rubber-based adhesive. This product's high tack and level of adhesion provide for a good bond to the skin. It contains a heavy duty liner with an easy release, ideal for converting.


Typical Application

Designed for ostomy applications, mounting electrodes, and grounding pads.


Features and Benefits
  • Thin and conformable
  • Die-cuttable
  • Gamma and EtO sterilizable

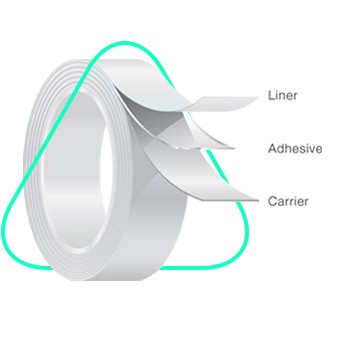

  Product Construction Typical Values*   Description
  Carrier Thickness 0.04 in
1.0 mm
  White polyethylene foam
  Adhesive Thickness 1.2 mils
30 µm
  Synthetic rubber-based adhesive designed for medical applications
  Release Liner Thickness
2.6 mils
65 µm
  White super-calendered glassine



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE)
TDS-02 1.5 lbf/in
6.5 N/25 mm
  Peel Adhesion on Stainless Steel (SS)
TDS-04
> 6.0 lbf/in
> 26.2 N/25 mm
  Liner Release
TDS-06
1.8 oz/in
49 g/25 mm
  Finat Tack
TDS-08
0.7 lbf/in
3.5 N/25 mm
  Static Shear
TDS-13
6900 minutes
  Elongation Machine Direction TDS-15
258%
  Elongation Cross Direction TDS-15
294%
  Load at Break Machine Direction TDS-15
7.1 lbf/in
31.1 N/25mm
  Load at Break Cross Direction TDS-15
3.8 lbf/in
16.5 N/25mm

*Refer to product specifications for material acceptance limits.
**Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
