MED 5699R

Single-coated,Film

MED 5699R is a single-coated, white, soft, conformable, thin polyethylene foam with a synthetic rubber-based adhesive. This product’s high tack and level of adhesion provide for a good bond to the skin. The liner is ideal for kiss cutting, die cutting and converting.


Typical Application

Designed for mounting electrodes, grounding pads and other devices for sustained periods.


Features and Benefits
  • Thin and conformable
  • Moisture resistant
  • Die-cuttable
  • Gamma and EtO sterilizable

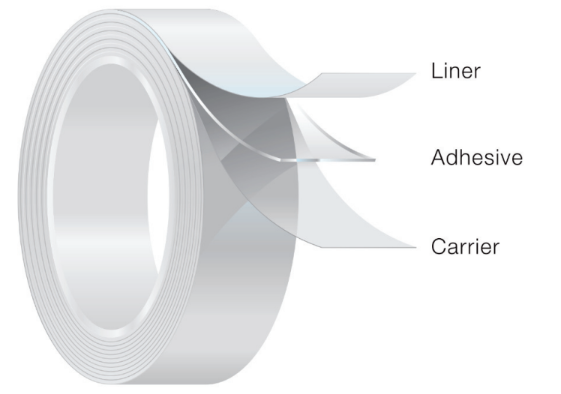

   Typical Values*    Description
  Liner Thickness 2.8 mils
70 µm
  Siliconized white super-calendered glassine
  Adhesive Thickness 2.0 mils 50 μm
  Synthetic rubber-based adhesive designed formedical applications
  Carrier Thickness 23.6 mils 600 μm
  White polyethylene foam

  Physical Properties (Not intended as a specification.) Test Method* Typical Values✝
  Peel Adhesion on Polyethylene (PE)
TDS-02 1.8 lbf/in 8 N/25 mm
  Peel Adhesion on Stainless Steel (SS)
TDS-04 > 6.0 lbf/in
> 26.0 N/25 mm
  Liner Release TDS-06 1.6 oz/in 45 g/25 mm
  Finat Tack TDS-08 0.6 lbf/in
2.5 N/25 mm
  Static Shear TDS-13 > 10,000 minutes
  Elongation - Machine Direction TDS-15 375%
  Elongation - Cross Direction TDS-15 375%
  Load at Break Machine Direction TDS-15 6 lbf/in 30 N/25 mm
  Load at Break - Cross Direction TDS-15 3 lbf/in 15 N/25 mm

*Test method information available upon request.

✝Refer to product specifications for material acceptance limits.





STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
