MED 5712P

Single-Coated Nonwoven

MED 5712P is a single-coated, tan spunlace nonwoven with a porous acrylic adhesive. This product's unique construction results in a high MVTR, allowing air and moisture to pass freely through the breathable adhesive and nonwoven carrier, which can support extended wear and reduce the likelihood of skin maceration in some applications.

Typical Application

Designed for TENS electrodes and other devices where good skin adhesion, comfort and breathability are desired.

Features and Benefits
  • Conformable
  • Moisture resistant
  • Breathable
  • Heat sealable
  • Die-cuttable
  • Gamma and EtO sterilizable

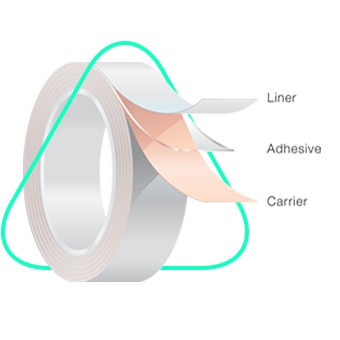

  Product Construction Typical Values*   Description
  Carrier Thickness 6.0 mils
 150 µm
   Tan spunlace nonwoven
  Adhesive Thickness 1.2mils
 30 µm
   Acrylic adhesive designed for medical applications
  Liner Thickness
 2.6 mils
 65 µm
   White super-calendered glassine



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE)
 TDS-01 0.7 lbf/in
 3.0 N/25 mm
  Peel Adhesion on Stainless Steel (SS)
 TDS-05
 1.0 lbf/in
 4.4 N/25 mm
  Liner Release
 TDS-06
 1.9 oz/in
 55 g/25 mm
  Finat Tack
 TDS-07
 2.4 lbf/in
 10 N/25 mm
  Static Shear
 TDS-12
 40 minutes
  MVTR
 TDS-16
 150 g/100 in2 per 24 hr
 2300 g/m2 per 24 hr

MVTR, moisture vapor transmission rate.
*Refer to product specifications for material acceptance limits.
**Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
