MED 5739 Single-Coated Nonwoven

MED 5739 is a single-coated, white polyurethane nonwoven with an acrylic adhesive designed for long-term wear. This product is soft, conformable and breathable.


Typical Application

Designed as an over-patch for multi-week wear time applications such as glucose monitors, insulin pumps, activity trackers, and other mobile health and wellness products.


Features and Benefits
  • Breathable
  • Conformable and flexible
  • Demonstrated multi-week wear
  • Biocompatible per ISO 10993
  • Die-cuttable and easy to handle
  • Sterilization compatibility with Ethylene Oxide (EO) and Gamma Irradiation

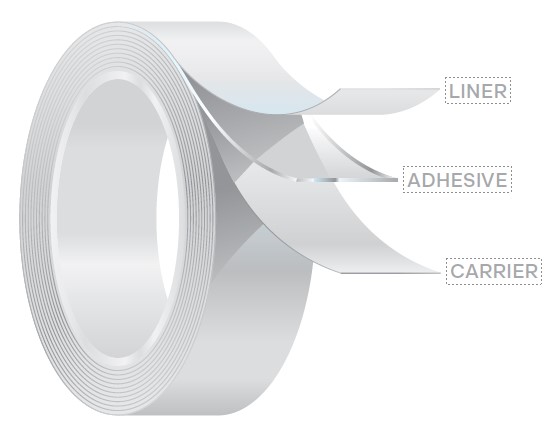

  Product Construction Typical Values*        Description
  Carrier Thickness
    3 mils 75 µm
        White thermoplastic polyurethane nonwoven
  Adhesive Thickness
    3 mils
51 µm
        Acrylic adhesive designed for medical applications
  Release Liner Thickness
    3 mils
76 µm
        White super-calendered kraft



  Physical Properties (Not intended as a specification.) Test Method**                            Typical Values*
  PEEL ADHESION ON POLYETHYLENE (PE)
TDS-01                                    150gsm
  QUICK STICK (GLASS)
TDS-05                       4 lbf/in              18 N/25 mm
  90-DEGREE LINER RELEASE
TDS-06                     175 gf/2in            2.7 oz/in
  STATIC SHEAR
TDS-12
                                  760 minutes
  MVTR
TDS-16
                             740 g/m2 per 24 hr


*Refer to product specifications for material acceptance limits.
**Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
