PRODUCT INFORMATION
| |
Typical Values
|

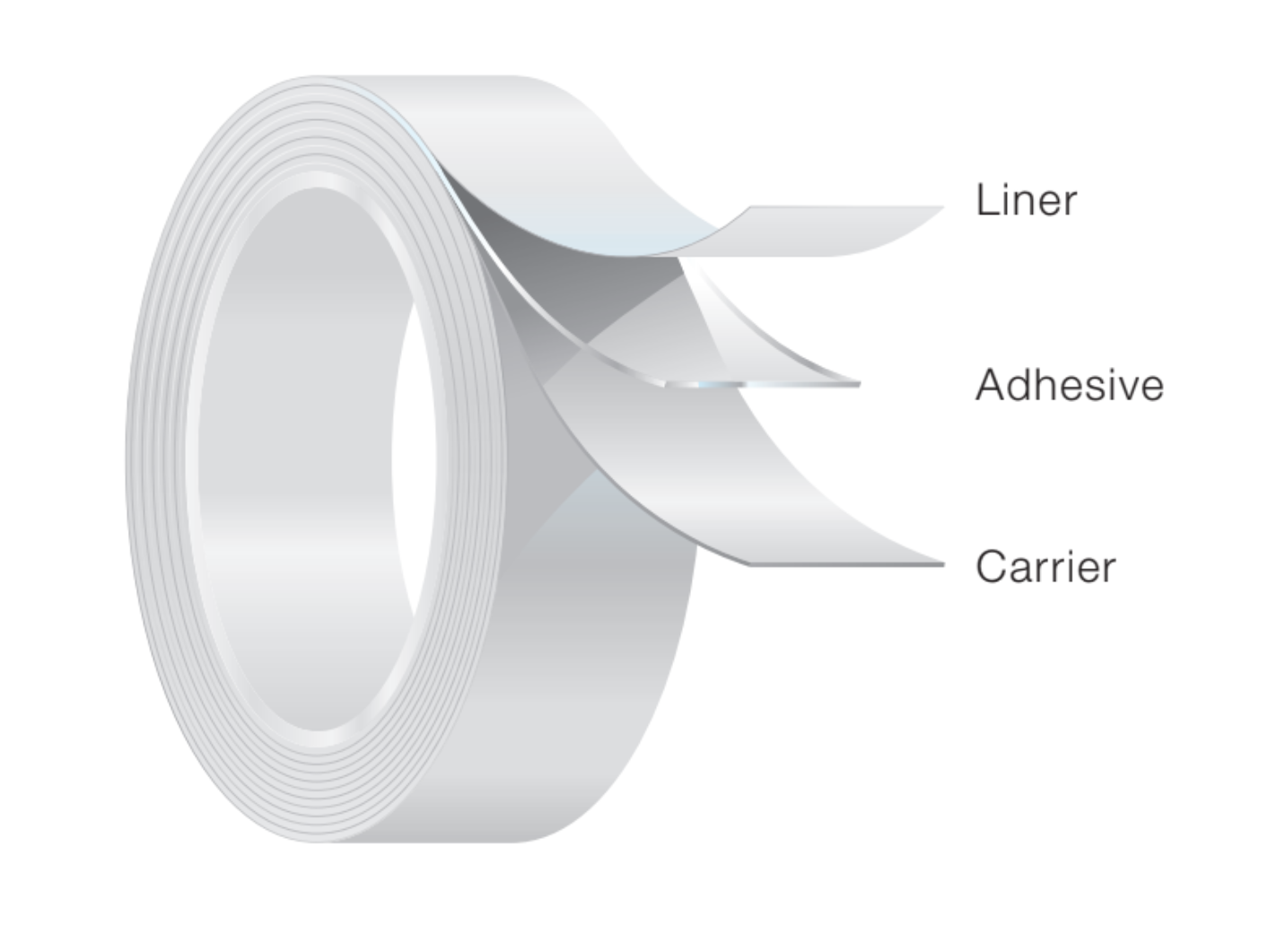

Description
|
|
Carrier Thickness
|
10 mils
|
260 µm
|
White thermoplastic polyurethane (TPU) nonwoven
|
|
Adhesive Thickness
|
4 mils
|
102 µm
|
Acrylic-based adhesive designed for medical applications
|
|
Liner Thickness
|
3 mils
|
76 µm
|
White super-calendered kraft
|
|
| |
|
|
|
|
|
PHYSICAL PROPERTIES (not intended as a specification)
| |
Test Method*
|
Typical Values✝
|
|
90-Degree Peel Adhesion on Polyethylene (PE)
|
TDS-01
|
2.6 lbf/in
|
11.5 N/25 mm
|
|
90-Degree Peel Adhesion on Stainless Steel (SS)
|
TDS-04
|
>8.0 lbf/in*
|
>35.6 N/25 mm*
|
|
Quick Stick
|
TDS-05
|
>8.0 lbf/in*
|
>35.6 N/25 mm*
|
|
90-Degree Liner Release
|
TDS-06
|
2.6 oz/in
|
72.5 g/25 mm
|
|
Finat Tack
|
TDS-07
|
13.6 lbf/in
|
60.5 N/25 mm
|
|
Static Shear
|
TDS-12
|
>10,000 minutes
|
|
MVTR
|
TDS-16
|
52 g/m2 per 24 hr
|
|
| |
|
|
|
|
*Adhesion to stainless steel is higher than the internal strength of the carrier, thus peel adhesion is recommended on a polyethylene.
#Test method information available upon request.
✝Refer to product specifications for material acceptance limits.
|
|
STORAGE AND SHELF LIFE
One year when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
IMPORTANT
Information on the above characteristics is based upon tests we believe to be reliable. The values given are typical values that vary according to application conditions. The values are intended only as a source of information and are given without guarantee and do not constitute a warranty. Purchasers should independently determine prior to use the suitability of this material for their specific purposes. All Avery Dennison materials described herein are sold subject to Avery Dennison Conditions of Sales, a copy of which is available upon request.
