MED 5745

Single coated tan nonwoven

MED 5745 uses a single-coated, soft, thin, tan  nonwoven with an acrylic adhesive. This product’s conformability offers a high degree of user comfort. The adhesive is protected by a one-side siliconized paper liner.

Typical application

Designed for microplate applications for analytical research and clinical diagnostic laboratory testing.

Features and benefits

  • Breathable, conformable and flexible

  • Biocompatible per ISO 10993

  • Die-cuttable and easy to handle

  • Sterilization compatibility with Ethylene Oxide (EO) and Gamma Irradiation

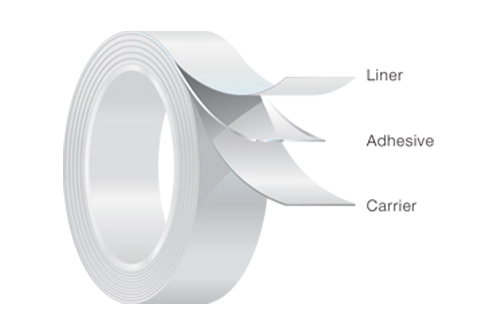

  Product construction
  Typical values    Description
  Carrier thickness 3 mils 75 μm
    Tan polyester nonwoven
  Adhesive thickness 3.4 mils 87 μm
    Acrylic adhesive designed for medical  applications
  Release liner thickness 1.9 mils 48 μm
    White single-coated kraft



  Physical properties (Not intended as a specification.)
  Test method* Typical values

  Peel Adhesion to Polyethylene (PE)

TDS-01

1.2 lbs/in

 5.3 N/25 mm

Quick Stick

TDS-05

2.0 lbs/in

8.9 N/25 mm

  90 degree Liner Release

TDS-6

3.0 oz/2”

85 g/50 mm

  Static Shear

TDS-12

260 minutes

  MVTR

TDS-16

300 g/m2/day

MVTR, moisture vapor transmission rate.

*Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
