MED 5767A

Single-Coated Nonwoven

MED 5767A is a single-coated, tan polyethylene nonwoven with an acrylic adhesive. This product is soft and conforms to most body contours.

Typical Application

Designed for ostomy applications, specialized wound dressings and fixation devices.

Features and Benefits
  • Conformable
  • Breathable
  • Heat sealable
  • Die-cuttable
  • Gamma and EtO sterilizable

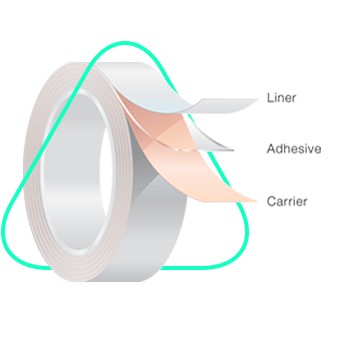

  Product ConstructionTypical Values*  Description
  Carrier Thickness19.7 mils
500 µm
  Tan polyethylene nonwoven
  Adhesive Thickness1.4 mils
35 µm
  Acrylic adhesive designed for medical applications
  Liner Thickness2.6 mils
65 µm
  White-super calendered glassine



  Physical Properties (Not intended as a specification.)Test Method**Typical Values*
  Peel Adhesion on Polyethylene (PE)
TDS-010.7 lbf/in
3.0 N/25 mm
  Peel Adhesion on Stainless Steel (SS)
TDS-05
0.7 lbf/in
3.0 N/25 mm
  Liner ReleaseTDS-061.4 oz/in
40 g/25 mm
  Finat Tack
TDS-07
1.6 lbf/in
7 N/25 mm
  Static ShearTDS-12100 minutes
  MVTRTDS-17160 g/100 in2 per 24 hr
2400 g/m2 per 24 hr


*Refer to product specifications for material acceptance limits.
**Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
