MED 5769A

Single-Coated Nonwoven

MED 5769A is a single coated soft, pliable, tan polyethylene nonwoven with a thin, acrylic, highly absorbent adhesive. This product's unique proprietary adhesive formulation, TASA™ (Thin Absorbent Skin Adhesive), allows air and moisture to pass freely through the breathable adhesive and nonwoven carrier, which can support extended wear time and reduce the likelihood of skin maceration. Its thin profile increases conformability.

Typical Application

Designed for advanced and consumer wound care, ostomy applications and securement.

Features and Benefits
  • Thin and conformable
  • Moisture resistant
  • HIghly breathable
  • Heat sealable
  • Absorbent adhesive
  • Die-cuttable
  • Gamma sterilizable

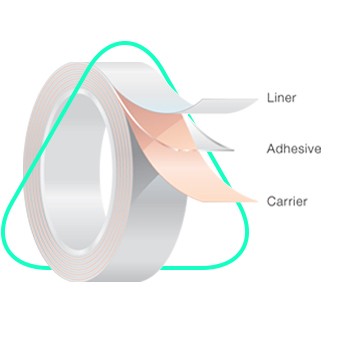

  Product ConstructionTypical Values*  Description
  Carrier Thickness19.7 mils
500 µm
  Tan polyethylene nonwoven
  Adhesive Thickness4.0 mils
100 µm
  Thin, absorbent, acrylic adhesive designed for medical applications
  Liner Thickness5.2 mils
130 µm
  White, clay-coated, bleached kraft paper



  Physical Properties (Not intended as a specification.)Test Method**Typical Values*
  Peel Adhesion on Polyethylene (PE)
TDS-01
0.2 lbf/in
1.0 N/25 mm
  Peel Adhesion on Stainless Steel (SS)
TDS-05
0.1 lbf/in
0.5 N/25 mm
  Liner ReleaseTDS-062.0 oz/in
55 g/25 mm
  Finat Tack
TDS-07
1.0 lbf/in
4.0 N/25 mm
  Static ShearTDS-12
320 minutes
  MVTRTDS-161250 g/100 in2 per 24 hr
20000 g/m2 per 24 hr
  Static AbsorptionTDS-1741 g/100 in2 per 24 hr
630 g/m2 per 24 hr

MVTR, moisture vapor transmission rate.
*Refer to product specifications for material acceptance limits.
**Test method information available upon request.

STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
