MED 5777A

Single-Coated Nonwoven

MED 5777A is a single-coated, white polyethylene nonwoven with an acrylic adhesive. This product is soft and conformable to most body contours.


Typical Application

Designed for ostomy appliation, specialized wound dressings and fixation devices.


Features and Benefits
  • Conformable
  • Moisture resistant
  • Breathable
  • Heat sealable
  • Die-cuttable
  • Gamma and EtO sterilizable

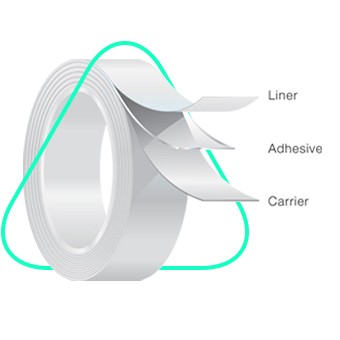

  Product Construction Typical Values*   Description
  Carrier Thickness 23.6 mils
600 µm
  White polyethylene nonwoven
  Adhesive Thickness 2.0 mils
50 µm
  Acrylic adhesive designed for medical applications
  Liner Thickness 2.6 mils
65 µm
  White super-calendered glassine



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE)
TDS-01
0.7 lbf/in
3.0 N/25 mm
  Peel Adhesion on Stainless Steel (SS)
TDS-05
0.5 lbf/in
2.0 N/25 mm
  Liner Release TDS-06 1.4 oz/in
40 g/25 mm
  Finat Tack
TDS-07
2.3 lbf/in
10 N/25 mm
  Static Shear TDS-12
50 minutes
  MVTR TDS-16
70 g/100in2 per 24 hr
1100 g/m2 per 24 hr

MVTR, moisture vapor transmission rate.
*Refer to product specifications for material acceptance limits.
**Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
