MED 5779A

Single-Coated Nonwoven

MED 5779A is a single-coated, white polyester/EVA nonwoven with an acrylic co-polymer emulsion adhesive. This product is soft and conforms to most body contours.


Typical Application

Designed for electromedical applications, fixation devices and wound care applications.


Features and Benefits
  • Conformable
  • Breathable
  • Heat sealable
  • Die-cuttable
  • Gamma and EtO sterilizable

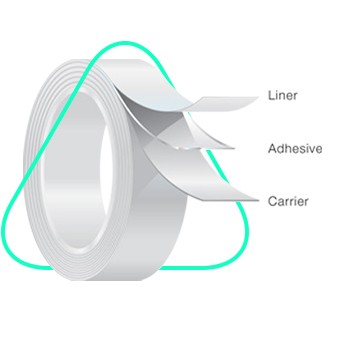

  Product Construction Typical Values*   Description
  Carrier Thickness 15.7 mils
400 µm
  White polyester/EVA nonwoven
  Adhesive Thickness 3.0 mils
75 µm
  Acrylic co-polymer emulsion adhesive designed for medical applications
  Liner Thickness 2.6 mils
65 µm
  White super-calendered glassine, silicone release coated on one side



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE)
TDS-01
0.9 lbf/in
4.0 N/25 mm
  Peel Adhesion on Stainless Steel (SS)
TDS-05
0.8 lbf/in
3.5 N/25 mm
  Liner Release TDS-06 1.4 oz/in
40 g/25 mm
  Finat Tack
TDS-07
3.2 lbf/in
14 N/25 mm
  Static Shear
TDS-12
2250 minutes
  MVTR
TDS-16
33 g/100 in2 per 24 hr
500 g/m² per 24 hr

MVTR, moisture vapor transmission rate.
*Refer to product specifications for material acceptance limits.
**Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
