MED 5780H

Single-Coated Nonwoven Hydrocolloid

MED 5780H is a single coated, white, water-repellent polyester spunlace nonwoven containing a gentle, highly absorbent traditional hydrocolloid adhesive.

Typical Application

Designed for ostomy applications.

Features and Benefits
  • Integrated hydrocolloid
  • Conformable
  • High absorption rate
  • Moisture resistant
  • Die-cuttable
  • Gamma sterilizable

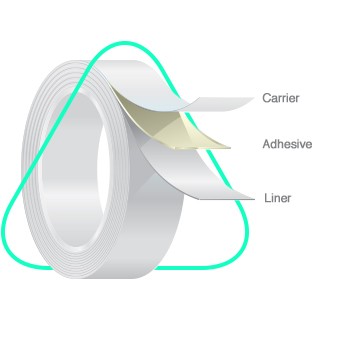

  Product Construction Typical Values*   Description
  Carrier Thickness 12.2 mils
 310 µm
   Whit, water-repellent, polyester spunlace nonwoven
  Adhesive Thickness 23.6 mils
 600 µm
   Hydrocolloid designed for medical applications
  Liner Thickness 2.0 mils
 50 µm
   Transparent, writable polyester liner



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE)
 TDS-02
 0.2 lbf/in
 1.0 N/25 mm
  Peel Adhesion on Stainless Steel (SS)
 TDS-03
 2.5 lbf/in
 11.0 N/25 mm
  Liner Release TDS-06 2.9 oz/in
 80 g/25 mm
  Reverse Tack
 TDS-09
 2.7 lbf/in
 12 N/25 mm
  Static Shear
 TDS-14
 160 min
  MVTR
 TDS-17
 90 g/100in2 per 24 hr
 1300 g/m2 per 24 hr
  Static Absorption
 TDS-17
 400 g/100in2 per 24 hr
 6000 g/m2 per 24 hr


*Refer to product specifications for material acceptance limits.
**Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
