MED 5803

Single-Coated Foil

MED 5803 is an adhesive-coated foil designed as a sealing component used in steam sterilization indicator tapes.

Typical Application

Designed for use as a sealing component in steam sterilization indicator tapes.

Features and Benefits
  • Good adhesion to high surface energy plastics
  • Excellent high temperature peel adhesion
  • Chemical, solvent, heat, humidity, and UV resistance

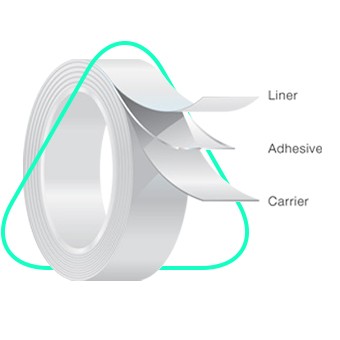

  Product Construction Typical Values*    Description
  Carrier Thickness 3.0 mils
   Foil
  Adhesive Thickness 1.0 mils
   Acrylic adhesive designed for medical applications
  Release Liner Thickness
 3.6 mils
   Single-coated kraft



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  180 Degree Peel Adhesion on Stainless Steel (SS)
 STD-10
 5 lbf/in
  Liner Release
 STD-8
 35 GF/2 in


*Refer to product specifications for material acceptance limits. **Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
