MED 6001P

Double-Coated Nonwoven

MED 6001P is a double-coated acrylic adhesive serving as a construction layer connecting a wearable device’s skin contact material to its sensor/electronics casing. This product's unique structure allows for enhanced breathability through both the adhesive and nonwoven carrier. The nonwoven support layer makes it easy to die cut and run through other manufacturing processes.


Typical Application

Designed for glucose monitors, insulin pumps, activity trackers, electrocardiogram monitors and other mobile health and wellness applications.


Features and Benefits
  • High shear strength
  • Enhanced breathability
  • Low height profile
  • Decreased potential for skin irritation in multilayered constructions
  • EtO and Gamma sterilizable

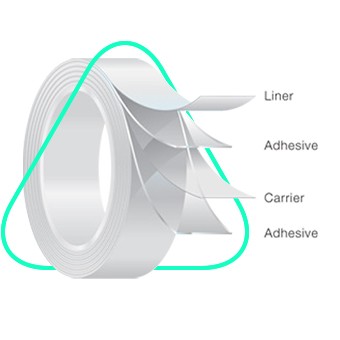

  Product Construction Typical Values*    Description
  Unwind Adhesive Thickness.
1.5 mils
38 µm
  Acrylic adhesive, porous, for medical applications
  Carrier Thickness 3.0 mils
76 µm
  White, nylon-based nonwoven
  Liner Adhesive Thickness
1.5 mils
38 µm
  Acrylic adhesive, porous, for medical applications
  Release Liner Thickness
3.0 mils
76 µm
  White, double-siliconized kraft paper



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Stainless Steel (SS)
TDS-04
2.3 lbf/in
10.4 N/25 mm
  Peel Adhesion on Polyethylene (PE)
TDS-01
0.3 lbf/in
1.3 N/25 mm
  Reversed Tack
TDS-09
4.31 lbf/in
19.4 N/25 mm
  Static Shear
TDS-12
25,000+ minutes
  MVTR
TDS-16
35 g/100in²/24h
550 g/m²/24h


*Refer to product specifications for material acceptance limits. **Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
