MED 6322

Double-Coated Film

MED 6322 is a double-coated, conformable, polyester film with an acrylic adhesive on both sides. This product is designed to adhere to many foams, films and nonwovens and also has a heavy weight liner, allowing for greater flexibility in product design and converting processes.

Typical Application

Designed for adhering to various types of substrates with the objective of combining multiple layers within a product's design.

Features and Benefits
  • Conformable
  • Die-cuttable
  • Gamma and EtO sterilizable

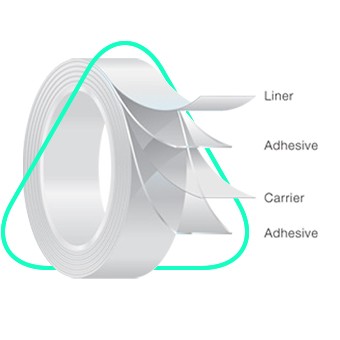

  Product Construction Typical Values*    Description
  Liner Thickness
 3.6 mils
 90 µm
   Super-calendered kraft
  Liner Adhesive Thickness
 2.0 mils
 50 µm
   Acrylic adhesive designed for medical applications
  Carrier Thickness
 0.5 mils
 15 µm
   Transparent PET film
  Unwind Adhesive Thickness
 1.2 mils
 30 µm
   Acrylic adhesive designed for medical applications



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE) - Liner
 TDS-01
 1.0 lbf/in
 4.5 N/25 mm
  Peel Adhesion on Polyethylene (PE) - Unwind
 TDS-01 0.9 lbf/in
 4.0 N/25 mm
  Peel Adhesion on Stainless Steel (SS) - Liner
 TDS-03 6.1 lbf/in
 28.0 N/25 mm
  Peel Adhesion on Stainless Steel (SS) - Unwind
 TDS-03 4.2 lbf/in
 19.0 N/25 mm
  Liner Release
 TDS-06 3.0 oz/in
 96 g/25 mm
  Dynamic Shear - Liner
 TDS-10
 50 lbf/in
 220 N/25 mm
  Dynamic Shear - Unwind
 TDS-10 34 lbf/in
 150 N/25 mm
  Finat Tack - Liner
 TDS-07
 6.5 lbf/in
 29 N/25 mm
  Finat Tack - Unwind
 TDS-07
 7.0 lbf/in
 30 N/25 mm


*Refer to product specifications for material acceptance limits. **Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
