MED 6373U

Couble-Coated Film

MED 6373U is a double-coated, thin, transparent sustainable polyester film containing 70% post consumer recycled content with a different adhesive on either side. On the liner side, a solventless acrylic adhesive provides a good initial tack and high adhesion to common natural and synthetic fabrics. On the unwind side, a synthetic rubber adhesive provides high initial tack and is suitable for use with various natural and synthetic substrates.


Typical Application

Designed for self-adhesive edges for surgical drapes while adhering to both the skin and natural and synthetic fabrics, as well as mounting of medical devices to the skin where moist conditions may exist.


Features and Benefits
  • Transparent
  • Moisture resistant
  • Die-cuttable
  • Gamma and EtO sterilizable
  • Sustainable: polyester with 70% post consumer recycled content (chemical recycling technology)

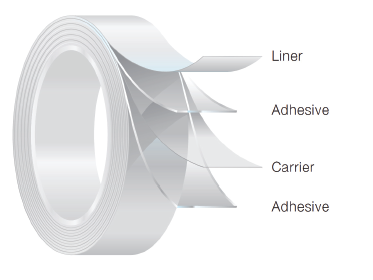

   Typical Values    Description
  Liner Thickness 2.8 mils
70 µm
  Siliconized white super-calendered glassine
  Adhesive Thickness 2.4 mils 60 μm
  Solventless acrylic adhesive designed for medical applications
  Carrier Thickness 0.5 mils 12 μm

  Transparent polyester film with 70% post consumer recycled content

  (chemical recycling technology)

  Unwind Adhesive Thickness 1.8 mils 45 μm
  Synthetic rubber adhesive designed for medical applications



  Physical Properties (Not intended as a specification.)

Test Method* Typical Values✝
  PEEL ADHESION ON POLYETHYLENE - LINER
TDS-01 1.0 lbf/in 4.5 N/25 mm
  PEEL ADHESION ON POLYETHYLENE - UNWIND
TDS-02 2.9 lbf/in
12.5 N/25 mm
  PEEL ADHESION ON STAINLESS STEEL - LINER TDS-03 4.3 lbf/in 19.0 N/25 mm
  PEEL ADHESION ON STAINLESS STEEL - UNWIND TDS-03 11.2 lbf/in 49.0 N/25 mm
  LINER RELEASE TDS-06 1.8 oz/in 50 g/25 mm
  FINAT TACK - LINER TDS-07 6.7 lbf/in 29 N/25 mm
  FINAT TACK - UNWIND TDS-08 2.7 lbf/in 12 N/25 mm
  DYNAMIC SHEAR - LINER TDS-10 39 lbf/in 170 N/25 mm
  DYNAMIC SHEAR - UNWIND TDS-11 110 lbf/in 480 N/25 mm

*Test method information available upon request.

✝Refer to product specifications for material acceptance limits.





STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
