MED 6390U

Double-Coated Film

MED 6390U is a double-coated, thin, transparent sustainable polyester film containing 70% post consumer recycled content with a different adhesive on either side. On the liner side, a synthetic rubber adhesive provides a high initial tack to the skin. On the unwind side is a solventless acrylic adhesive designed to adhere to polyethylene films.


Typical Application

Designed for surgical drape tapes where there is a need to adhere a drape to a patient’s skin.


Features and Benefits
  • Transparent
  • Moisture resistant
  • Die-cuttable
  • Gamma and EtO sterilizable
  • Sustainable: polyester with 70% post consumer recycled content (chemical recycling technology)

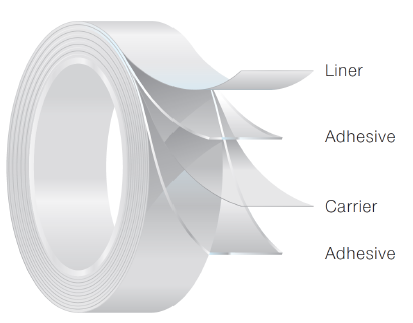

   Typical Values    Description
  Liner Thickness 2.8 mils
70 µm
  Siliconized white super-calendered glassine
  Liner Adhesive Thickness 1.8 mils 45 μm   Synthetic rubber adhesive designed for medical applications
  Carrier Thickness 0.5 mils 12 μm

  Transparent polyester film with 70% post consumer recycled content

  (chemical recycling technology)

  Unwind Adhesive Thickness 2.4 mils 60 μm
  Solventless acrylic adhesive designed for medical applications









  Physical Properties (Not intended as a specification.)









Test Method*









Typical Values✝

  PEEL ADHESION ON POLYETHYLENE - LINER
TDS-02 3.0 lbf/in 13.0 N/25 mm
  PEEL ADHESION ON POLYETHYLENE - UNWIND
TDS-01 0.9 lbf/in 4.0 N/25 mm
  PEEL ADHESION ON STAINLESS STEEL - LINER TDS-03 9.9 lbf/in 43.0 N/25 mm
  PEEL ADHESION ON STAINLESS STEEL - UNWIND TDS-03 3.9 lbf/in 17 N/25 mm
  LINER RELEASE TDS-06 1.3 oz/in 35 g/25 mm
  FINAT TACK - LINER TDS-08 3.0 lbf/in 13 N/25 mm
  FINAT TACK - UNWIND TDS-07 6.2 lbf/in 27 N/25 mm
  DYNAMIC SHEAR - LINER TDS-11 117 lbf/in 510 N/25 mm
  DYNAMIC SHEAR - UNWIND TDS-10 39 lbf/in 170 N/25 mm

*Test method information available upon request.

✝Refer to product specifications for material acceptance limits.





STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
