MED 6513SI

Double-Coated, Trilaminate PU Film with a High Tack Soft Silicone Adhesive

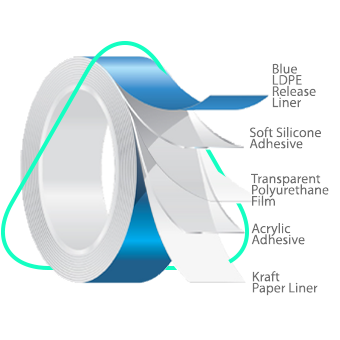

MED 6513SI is a double-coated, transparent polyurethane film with a high tack soft silicone adhesive (SSA) for adhering to the skin, with an acrylic adhesive suitable for a wide variety of materials. The softness, conformability and repositionability of the silicone adhesive offer a high degree of user comfort. The fully-coated silicone adhesive side of the roll is equipped with a blue LDPE release liner. The acrylic adhesive contains a white paper liner.


Typical Application

Designed for conversion as the silicone adhesive layer for multi-layered advanced wound care dressings. Application areas also include patient monitoring and wearables.


Features and Benefits
  • Greatly increases skin adhesion while remaining gentle and soft
  • Repositionable with minimal pain upon removal
  • Secure fixation
  • Transparent
  • Conformable and flexible
  • Non-irritating, non-sensitizing, skin-friendly
  • Atraumatic removal with minimal epidermal stripping
  • EtO sterilizable

  Product Construction Typical Values*   Description
  Carrier Thickness 1.6 mils
40 μm
  Transparent polyether polyurethane film
  Silicone Adhesive Coat Weight
150 gsm
  Soft silicone adhesive designed for medical applications
  Acrylic Adhesive Coat Weight
1.6 mils
40 μm   Acrylic adhesive designed for medical applications
  Silicone Liner Thickness 4.0 mils
100 µm
  Blue LDPE
  Acrylic Liner Thickness 3.4 mils
85 μm   White super-calendered glassine paper



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Silicone Adhesive Coat Weight
TM043
150 gsm
  Silicone Peel Adhesion (Polycarbonate Plate)
TM040
2.42 N/25 mm
  Silicone Liner Release TM020 0.05 N/25mm
  Acrylic Peel Adhesion (Stainless Steel Plate) TM021
8 N/25 mm
  Acrylic Liner Release TM020
0.15 N/25 mm

*Refer to product specifications for material acceptance limits.
**Test method information available upon request.





STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
