MED 6651R

Double-Coated Foam

MED 6651R is a double-coated, white, soft, conformable, thin, closed-cell polyolefin foam with a synthetic rubber adhesive. This product offers a good initial tack, allowing for adhesion to various natural and synthetic substrates. It contains a heavy-weight liner with ideal release for kiss cutting, die cutting and converting.


Typical Application

Designed for ostomy application and fixation devices.


Features and Benefits
  • Thin and conformable
  • Moisture resistant
  • Die cuttable
  • Gamma and EtO sterilizable

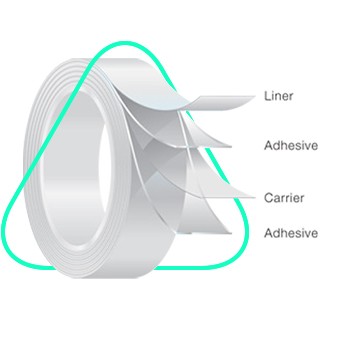

  Product Construction Typical Values*    Description
  Unwind Adhesive Thickness
1.6 mils
40 µm
  Solventless acrylic adhesive designed for medical applications
  Carrier Thickness
31.5 mils
800 µm
  White, crosslinked, closed cell polyolefin foam
  Liner Adhesive Thickness
1.6 mils
40 µm
  Synthetic rubber adhesive designed for medical applications
  Release Liner Thickness
3.2 mils
80 µm
  Blue/green super-calendered glassine



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE) - Liner
TDS-02
1.4 lbf/in
6.0 N/25 mm
  Peel Adhesion on Polyethylene (PE) - Unwind
TDS-02 1.4 lbf/in
6.0 N/25 mm
  Peel Adhesion on Stainless Steel (SS) - Liner
TDS-04 9.0 lbf/in
39.0 N/25 mm
  Peel Adhesion on Stainless Steel (SS) - Unwind
TDS-04 9.6 lbf/in
42.0 N/25 mm
  Liner Release
TDS-06 1.1 oz/in
30 g/25 mm
  Finat Tack - Liner
TDS-08
0.9 lbf/in
4 N/25 mm
  Finat Tack - Unwind
TDS-08
1.1 lbf/in
5 N/25 mm
  Static Shear - Liner
TDS-13
>11,000 minutes
  Static Shear - Unwind
TDS-13
>11,000 minutes
  Elongation Machine Direction TDS-15 400%
  Elongation Cross Direction TDS-15 375%
  Load at Break Machine Direction TDS-15 8 lbf/in
35 N/ 25mm
  Load at Break Cross Direction TDS-15 5 lbf/in
20 N/ 25mm

*Refer to product specifications for material acceptance limits.
**Test method information available upon request.





STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
