MED 6653

Couble-Coated Film

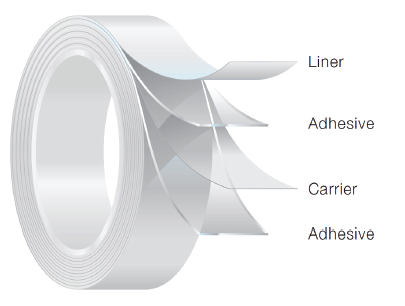

MED 6653 is a double-coated, white, soft, conformable, thin polyethylene foam with a rubber adhesive on the mounting side and a solventless acrylic adhesive on the laminating side. This product offers a high initial tack and high adhesion to the skin. The liner is ideal for kiss cutting, die cutting and converting.

Typical Application

Designed for ostomy flanges and fixation devices.

Features and Benefits
  • Thin and conformable
  • Moisture resistant
  • Heat sealable
  • Die-cuttable
  • Gamma and EtO sterilizable
   Typical Values    Description
  Release Liner Thickness 2.8 mils
 70 µm
   Siliconized white super-calendered glassine
  Liner Adhesive Thickness 2.0 mils 50 μm   Synthetic rubber adhesive designed for medical applications
  Carrier Thickness 23.6 mils 600 μm

  White polyethylene foam
  Unwind Adhesive Thickness 1.6 mils 40 μm
   Solventless acrylic adhesive designed for medical applications









  Physical Properties (Not intended as a specification.)









Test Method*









Typical Values✝
  Peel Adhesion on Polyethylene (PE) - Liner
 TDS-02 3.0 lbf/in 13.0 N/25 mm
  Peel Adhesion on Polyethylene (PE) - Unwind
 TDS-01 0.7 lbf/in 3.0 N/25 mm
  Peel Adhesion on Stainless Steel (SS) - Liner TDS-04 > 9.0 lbf/in > 40.0 N/25 mm
  Peel Adhesion on Stainless Steel (SS) -Unwind TDS-04 9.0 lbf/in 40.0 N/25 mm
  Liner Release TDS-06 1.6 oz/in 45 g/25 mm
  Finat Tack - Liner TDS-08 0.6 lbf/in 2.5 N/25 mm
  Finat Tack - Unwind TDS-07 8.0 lbf/in 35 N/25 mmm
  Static Shear - Liner TDS-13 > 10,000 minutes
  Static Shear - Unwind TDS-12 560 minutes
  Elongation Machine Direction TDS-15 375%
  Elongation Cross Direction TDS-15 375%
  Load at Break Machine Direction TDS-15 39 lbf/in 170 N/25 mm
  Load at Break Cross Direction TDS-15 39 lbf/in 170 N/25 mm


*Test method information available upon request.

✝Refer to product specifications for material acceptance limits.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
