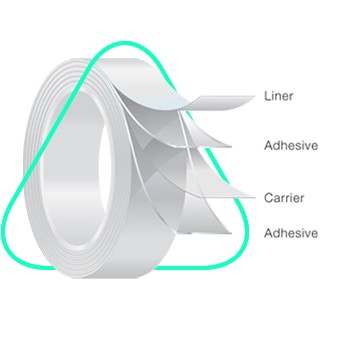

| Product Construction | Typical Values* | Description |
Liner Thickness
| 3.6 mils
| 90 µm
| 64# single-coated kraft
|
Liner Adhesive Thickness
| 2.6 mils
| 65 µm
| Rubber-based adhesive designed for medical applications
|
Carrier Thickness
| 0.5 mils
| 15 µm
| Transparent polyester film
|
Unwind Adhesive Thickness
| 2.6 mils
| 65 µm
| Rubber-based adhesive designed for medical applications
|
| Physical Properties (Not intended as a specification.) | Test Method** | Typical Values* |
|---|
Peel Adhesion on Polyethylene (PE) - Liner
| TDS-01
| 2.5 lbf/in
| 11.0 N/25 mm
|
Peel Adhesion on Polyethylene (PE) - Unwind
| TDS-01 | 2.5 lbf/in
| 11.0 N/25 mm
|
Peel Adhesion on Stainless Steel (SS) - Liner
| TDS-03 | 9.8 lbf/in
| 44.0 N/25 mm
|
Peel Adhesion on Stainless Steel (SS) - Unwind
| TDS-03 | 10.2 lbf/in
| 46.0 N/25 mm
|
Liner Release
| TDS-06 | 2.0 oz/in
| 49 g/25 mm
|
Dynamic Shear - Liner
| TDS-10
| 151 lbf/in
| 79 N/25 mm
|
Dynamic Shear - Unwind
| TDS-10
| 199 lbf/in
| 80 N/25 mm
|
| Finat Tack - Liner | TDS-07 | 18.0 lbf/in
| 660 N/25 mm
|
| Finat Tack - Unwind | TDS-07 | 18.5 lbf/in
| 870 N/25 mm
|
*Refer to product specifications for material acceptance limits. **Test method information available upon request.
STORAGE AND SHELF LIFE
Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
