MED 9083A

Single-Coated Film

MED 9083A is a single-coated, soft, pliable, transparent, embossed polyethylene film with an acrylic adhesive. This product's conformable film with matte finish offers a high degree of user comfort.


Typical Application

Designed for ostomy flanges and finger bandages.


Features and Benefits
  • Conformable
  • Transparent
  • Breathable
  • Die-cuttable
  • Moisture resistant
  • Gamma and EtO sterilizable

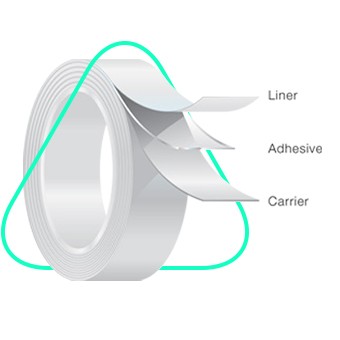

  Product Construction Typical Values*   Description
  Carrier Thickness 15.2 mils
 385 µm
  Transparent embossed matte polyethylene film
  Adhesive Thickness 1.2 mils
30 µm
  Acrylic adhesive designed for medical applications
Release Liner Thickness
3.3 mils
85 µm
  White super-calendered glassine



  Physical Properties (Not intended as a specification.) Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE)
TDS-01 0.5 lbf/in
2.0 N/25 mm
  Peel Adhesion on Stainless Steel (SS)
TDS-03
1.5 lbf/in
7.0 N/25 mm
  Liner Release
TDS-06
0.7 oz/in
26 g/25 mm
  Dynamic Shear TDS-10
18 lbf/in
80 N/25 mm
  Finat Tack TDS-07
1.5 lbf/in
7.0 N/25 mm
  MVTR TDS-16 35 [g/100in2/24 hours]
550 [g/m2/24 hours]
  Elongation Machine Direction TDS-15 800%
  Elongation Cross Direction TDS-15 800%
  Load at Break Machine Direction TDS-15 6.5 lbf/in
29 N/25mm
  Load at Break Cross Direction TDS-15 5.5 lbf/in
25 N/25mm


*Refer to product specifications for material acceptance limits. **Test method information available upon request.



STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
