MED 9584S

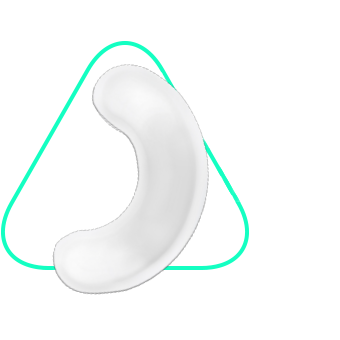

Beveled Edge Flange Extender

MED 9584S is a single-coated, transparent polyurethane film with an advanced and highly integrated hydrocolloid formulation, with beveled edges. The flange extender is self-adhesive and is protected by a release liner. The product is designed to provide additional securement of the ostomy flange to the body. It is composed of a thin layer of skin-friendly hydrocolloid cut to 180 degrees, which is easy to apply and provides extra adhesion where it is needed. The product is supplied non-sterile.

Typical Application

Designed for ostomy applications.

Features and Benefits
  • Avoid edge lift
  • Prevention of leakage
  • Higher sense of security
  • Large design to accommodate most flange sizes
  • Conformable
  • Highly integrated
  • High absorption rate
  • Moisture resistant
  Product Construction
 Typical Values*    Description
  Carrier Thickness 1.65 mils
 40 µm
   Matte transparent polyurethane film, with acrylic adhesive
  Adhesive Thickness 5.9 mils (edge) to 25.6 mils (center)
 150 µm (edge) to 650 µm (center)
   Hydrocolloid designed for medical applications
  Liner Thickness  6.3 mils
 160 µm
   White polyethylene protected paper



Physical Properties (Not intended as a specification)
 Test Method** Typical Values*
  Peel Adhesion on Polyethylene (PE)
 TDS-02
 1.0 lbf/in
 4.3 N/25 mm
  Peel Adhesion on Stainless Steel (SS)
 TDS-03
 8.7 lbf/in
 40 N/25 mm
  Liner Release
 TDS-06
 2.7 oz/in
 75 g/25 mm
  Reverse Tack TDS-09
 6.9 lbf/in
 30 N/25 mm
  Static Shear TDS-14
 9000 minutes
  Static Absorption TDS-17
 5000 g/m² per 24 hr
 330 g/100in² per 24 hr

*Refer to product specifications for material acceptance limits.
**Test method information available upon request.





STORAGE AND SHELF LIFE

Two years when stored at 23°C (73°F), 50% relative humidity, out of direct sunlight, in original packaging.
